Challenge
Black Jack Creek had become a high-energy, deeply entrenched urban channel that posed an escalating risk to nearby homes, utilities, and public safety behind Cedarhurst Drive in North St. Louis County. What began as a localized streambank slump evolved into major failures along a 1,300-foot reach, with erosion threatening residential property, fences, utility infrastructure, and the long-term stability of the corridor. The project had to be executed within a narrow, fully developed setting where limited access, adjacent utilities, and residential proximity significantly constrained design and construction options.
The technical complexity extended well beyond slope repair. Because the reach lies within a FEMA floodway and a jurisdictional water of the United States, the design had to satisfy floodplain and permitting requirements while still delivering meaningful stabilization. HR Green needed to evaluate hydraulic performance, channel geometry, slope stability, sediment behavior, and constructability at the same time. Detailed hydraulic modeling and FEMA no-rise analysis were required to confirm that the proposed improvements would not increase flood elevations, while geotechnical investigation and slope stability analysis were needed to support a durable long-term solution.
Solution
HR Green served as the primary engineering consultant, leading the technical development and implementation of the stabilization program. The team provided hydraulic modeling, geomorphological assessment, floodplain analysis, design development, cost estimating, permitting support, and construction administration. Rather than focusing only on the visibly failed areas, HR Green evaluated four alternatives and recommended a long-reach stabilization strategy that addressed both current and future instability across the full creek segment. That approach shifted the project from a short-term repair effort to a corridor-wide resiliency improvement.

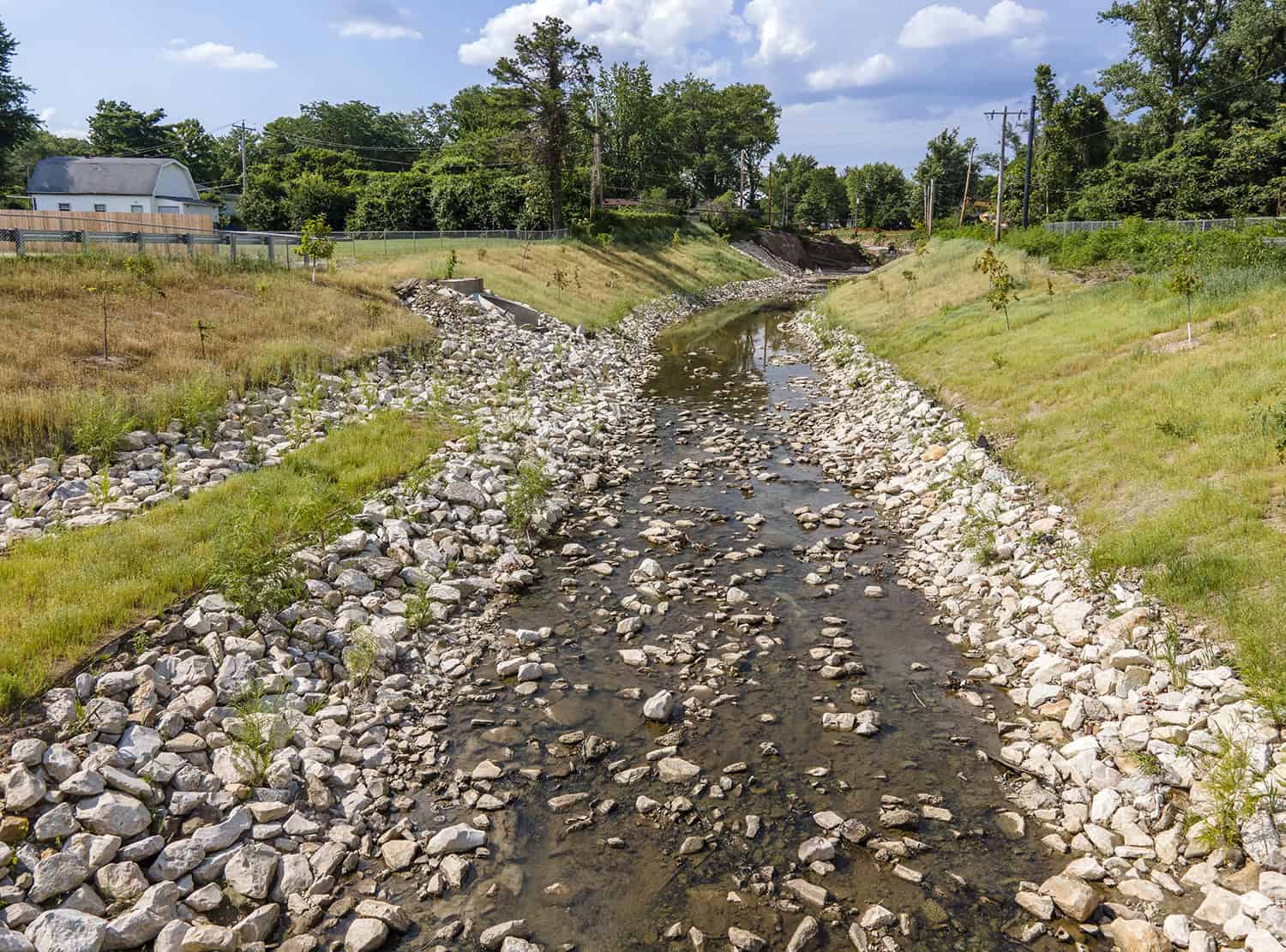

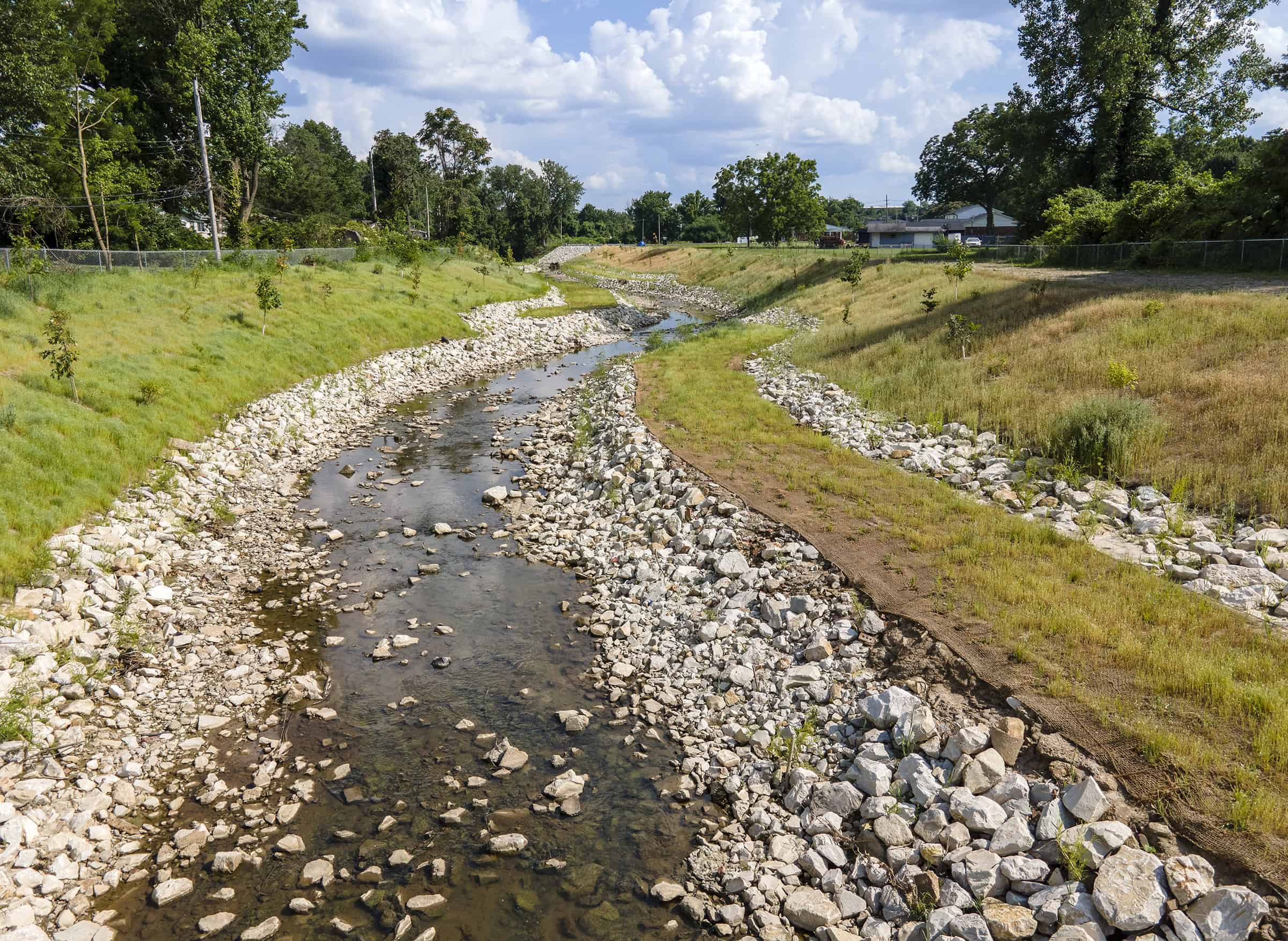

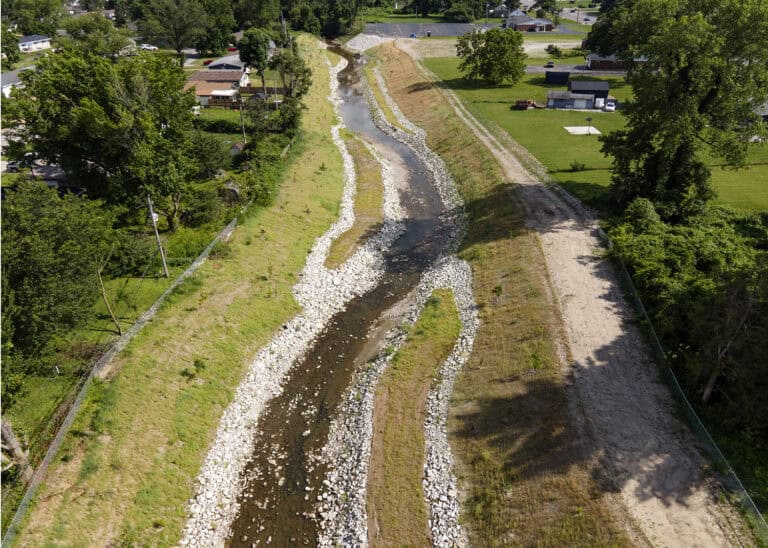

The selected design combined structural stabilization with natural channel restoration techniques. HR Green realigned and reshaped the channel to establish stable 3:1 side slopes, incorporated toe protection and grade control structures, and introduced floodplain benches to dissipate energy during higher flows. The design also reintroduced meanders, riffles, and pools to improve hydraulic balance and stream function, while native vegetation, vegetated soil lifts, and live staking were used to strengthen the banks and support long-term ecological recovery. This hybrid approach allowed the project to manage erosive forces without over-confining the channel or relying solely on hard armoring.
The work also demanded careful construction coordination. Because the site was located directly behind homes and near active utilities, access, sequencing, and staging had to be tightly managed to reduce disruption and maintain safety. HR Green supported that effort through design and construction-phase coordination with Metropolitan St. Louis Sewer District (MSD), contractors, residents, and public agencies, including coordination related to upstream bridge replacement work and nearby channel improvements.
Benefit
The project transformed a hazardous, erosion‑prone urban stream into a stable, resilient channel that protects nearby homes, utilities, and public infrastructure. By addressing the creek’s full geomorphic behavior, the design reduced recurring erosion risks, improved cost predictability, and advanced MSD’s watershed management goals. Reconnected floodplains, native vegetation, and bioengineered stabilization improved sediment management, habitat conditions, and visual compatibility within the residential setting. Completed ahead of schedule and under budget, the project gives MSD a model for future stabilization efforts where public safety, infrastructure protection, and long-term stream performance all need to be addressed together.
